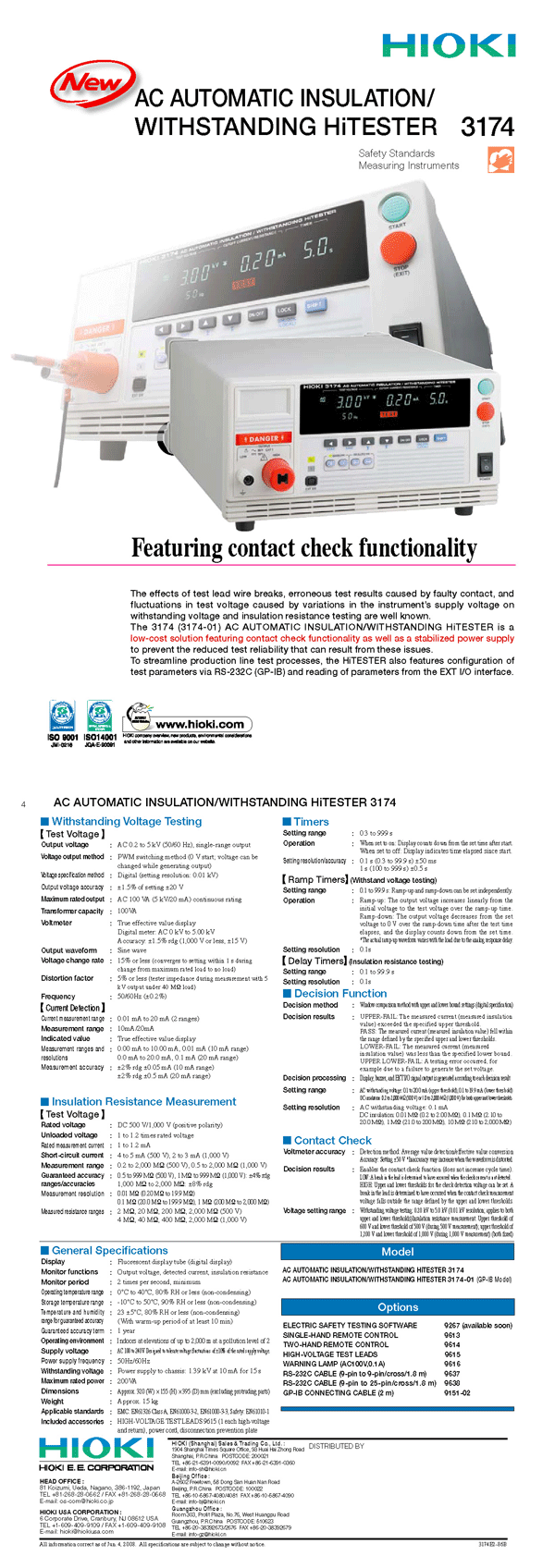

| Basic specifications (Accuracy guaranteed for 1 year) |
| [Withstanding test] |
| Testing voltage |
0.2V AC to 5.00kV AC |
| Voltage setting method |
Digital setting, Setting resolution: 0.01kV |
| Waveform/ Frequency |
Sine wave (Distortion ratio 5% or less at no load), 50/60Hz selectable |
| Current measurement range |
0.01mA to 20.0mA, True RMS rectified (digital display) |
| Measurement range |
10mA (0.01mA resolution), 100mA (0.1mA resolution) |
| Voltage meter |
Accuracy: ±1.5% rdg. (1000 V or more), ±15V (less than 1000V), True RMS rectified |
| Judgment function |
Window comparator method (Digital setting) | |
|
| Testing voltage |
500V DC, 1000V DC |
| Rated testing current |
1 to 1.2mA, Shorted current: 4 to 5mA (at 500V), 2 to 3mA (at 1000V) |
| Measurement range, Accuracy |
0.5mΩ to 999MΩ (at 500V), and 1MΩ to 999MΩ (at 1000V) : ±4% rdg., 1000MΩ to 2000MΩ : ±8% rdg. |
| Judgment function |
Window comparator method (Digital setting) | |
|
| Measurement range, Accuracy |
0.3 to 999s, and 0.3 to 99.9s : ±50ms, 100 to 999s : 0.5s |
| Delay/Ramp timer |
0.1 to 99.9s: ±50ms, 0.1s resolution |
| Functions |
Saving eight testing conditions, hold, buzzer, contact check |
| Moniter function |
Output voltage, detected current, insulation resistance, Refresh rate: 4times/s |
| Power consumption |
100 to 240V AC, (50/60Hz), 200VA max. |
| Dimensions, mass |
320mm (12.60in) W × 155mm (6.10in) H × 395mm (15.55in) D, 15kg (529.1oz) |
| Supplied accessories |
H.V. TEST LEAD 9615 (Red, black) × 1, Power cord × 1, Operation manual × 1 | |
|
|
