Emission Measurement System for PCB EPS-3007

Niear field scanner system to "visualize" the inteference properties of the circuit board

Product catalog

GENERAL

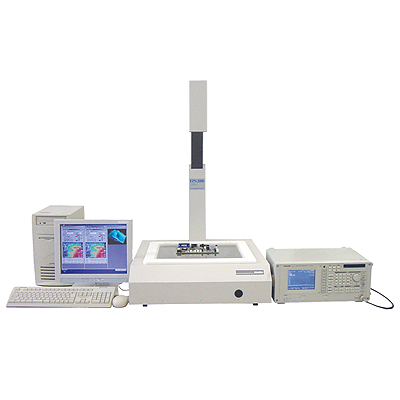

The EMC PRECISION SCAN is a scanner system to measure RF near-field emissions from a printed circuit board under test in normal offices or similar electromagnetic environments by utilizing an X-Y axis antenna probe scanning mechanism. The scanning results are represented on the user's PC monitor as frequency spectrum charts and field intensity distribution color maps, the latter of which is superimposed on the actual board image captured by the CCD camera mounted on the scanner main unit, allowing the user to easily locate the exact sources of emission.

FEATURES

Provides an amplitude versus frequency plot for each antenna probe position and field intensity distribution map by a single scan
Electric and magnetic fields are separately detected.
Wide and selectable frequency range
Fine resolution
3D graphical representation and zoom capability for a given area
Comparison before and after a modification or improvement
Scanning by a single antenna probe to minimize error between each measurement point
3GHz maximum frequency response (option)
Standard included three kinds of antenna probes (Probe A, Probe B and Probe C)
Simple and easy-to use

APPLICATIONS

This product is now used in the following applications. Our company is continuously developing various new applications in cooperation with our customers. For example:

Locates spots with higher field level compared to other spots
Locates spots with the frequency or frequency range in question, if any
Comparison of measurements resutls between before and after modifications in circuit design
Measurement for components
Evaluates the effectivness of EMI suppression components
Measurement for I/O cables
Measurement for the surface of small metal enclosure

SPECIFICATIONS

Main unit/Controller

Scanning method	Scanning of micro-electromagnetic field probe by XY stage
Analysis of detection signal	Analysis using spectrum analyzer
Frequency response	30MHz ~ 1.5GHz (standard) 30MHz ~ 3GHz (Option)
Low Frequency response (option)	150kHz ~ 100MHz
Control method	Control by personal computer GP-IB interface, pulse motor control, image control
Scanning area	300 (length) x 350mm (Width) maximum
Scanning resolution	1.0mm x 1.0 mm (depending on an antenna probe)
Minimum scanning step	1mm/0.1mm step
Power supply	AC95~120, 210~250V 50/60Hz, 150VA
Dimensions and weight	(W) 601 x (H) 980 x (D) 662mm
Weight	Approx. 37kgs
Scanning probes	Probe A (for vertical magnetic field) , Probe B (for horizontal magnetic field), Probe C (for electric field)
Function	Scanning frequency range setting, Comparison, Filing and printing the measured data, Emission spectrum display, Search of source of maximum noise emission, Display of the emission intensities from the PCB under test, Synthesization of the emission data and overlaid on real-time image of the PCB

Personal Computer (Required specifications)

Compatible machine	IBM PC-AT compatible machine running the Windows㈢ XP Recommended CPU: Pentium㈢ケ233MHz or higher Main memory: 128M byte or more recommended HDD: 100MB or more (dependinng on scanning data quantity) Display mode: SVGA or XGA
OS	Microsoft㈢ Windows㈢XP, WindowsVista㈢, Windows7㈢
Software	DirectX㈢ version 2.0 after is necessary. (Direct㈢ version 5.0 is recommended.) Used for 3D display.
Expansion Slots	2 x full height PCI slots (for the Pulse Motor Board and the Video Board) 1 x full height PCIe slot or USB (for the GP-IB Board)
Expansion Board	GP-IB Board (Using IRQ) Pulse Motor Board (Not using IRQ) Video Board (Using IRQ)
