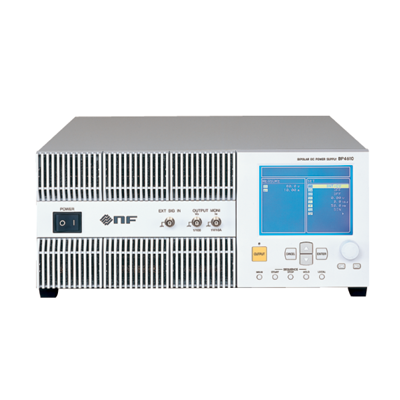

Automotive Transient Surge Simulator Model BP4610
Pulse 2b, 4 Generator
FEATURES
- Pulse 2b and Pulse 4 generating unit
- +-60V 10A DC - 150kHz built-In bipolar amplifier
- Functions as the DUT power supply for testing with the other pulses
- Upgradeable to 15A or 30A by use of an optional external power supply
SPECIFICATIONS
| Parameters |
Specifications (Pulse 2b. 4) |
| Pulse 2b |
UA, Us (*) |
0V ~ 60.0V ±10% ±0.5V in steps of 0.1V |
| Ri |
0 ohm ~ 0.05 ohm |
| Td |
0.1s, 0.2s, 0.5s, 1s, 2s, 4s ±20% |
| t12, tr, t6 (*) |
1ms, 2ms, 5ms ±50% |
| Pulse 4 |
Ub |
0V ~ 60V ±10% ±0.5V In steps of 0.1V |
| Us, Ua |
0V ~ -Ub ±10% ±0.5V In steps of 0.1V |
| Ri |
0 ohm ~ 0.02 ohm (Factory setting) |
| t7, t8, t10, t11 (*) |
1ms ~ 999ms ±10% In steps of 1ms |
| t9 |
0.1s ~ 99.9s ±10% In steps of 0.1s |
| Dimensions |
(W) 430 X (H) 177 X (D) 550 mm
(Projections excluded) |
| Weight |
Approx. 26 kgs |
(*) Each item can be set separately.
Please contact us for details of 100A and 200A types.
