Automotive Transient Surge Simulator Model JSS-001/002/003
Conforming to JASO D001-94
Product catalog

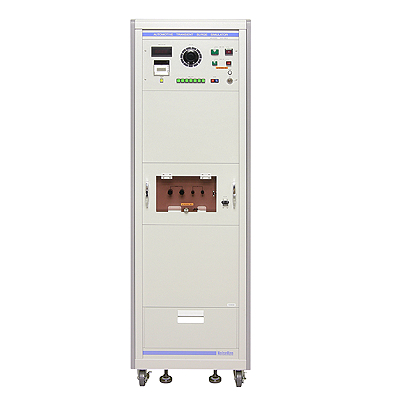

MODEL: JSS-003
FEATURES
JSS series simulator has been developed to test the immunity of electronic equipment for automobiles against the transient voltage surge on the basis of the General Rules of the Environmental Testing Methods JASO (Japanese Automobile Standards Organization) D001-94 published by the Society of Automotive Engineers of Japan, Inc. The resistance capability of electronic equipment against transient voltage surges, which occur on supply circuits and may cause malfunctions, can be easily checked with JSS series simulator.
SPECIFICATIONS
| Parameters |
JSS-003 |
| JSS-001 |
JSS-002 |
| D001-94 Type of Test |
A-1 |
A-2 |
B-1 |
B-2 |
D-1 |
D-2 |
E |
| Output voltage (Vp) |
0~100V |
0~150V |
0~-100V |
0~-320V |
0~150V |
0~200V |
0~-400V |
| Decaying time constant (τ) |
|
|
|
|
|
|
26ms |
| Output impedance |
0.8Ω |
0.4Ω |
8Ω |
80Ω |
1.5Ω |
0.9Ω |
210Ω |
| DC Cut time (ts) |
- |
- |
300ms |
10ms |
- |
- |
120ms |
| Time from 0V to Vp |
<1µs |
| Repetition time (1/f) |
30s |
| Number of pulses |
1~999,999 (Set by a 6-digit preset counter) |
| Output channel |
1 channel |
| Voltage display |
3-digit 7-segment |
| EUT power capacity |
DC50V/10A max |
| Power supply |
AC 100V (or a customer specified between AC100~240V), 50/60Hz |
| Operating temperature |
0~40ºC |
| Dimensions |
JSS-001/002: (W)555 x (H)1500 x (D)790mm
JSS-003: (W)555 x (H)1800 x (D)790mm |
| Weight |
JSS-001/002: Approx. 160kg, JSS-003: Approx. 200kg |
