.The safety of temperature sensitive products including pharmaceuticals, vaccines and food raised more and more public attention nowadays, transport is an important part making up supply chain, so no doubt a reliable and accurate approach to monitoring the temperature condition in transit is as vital as other quality control measures.

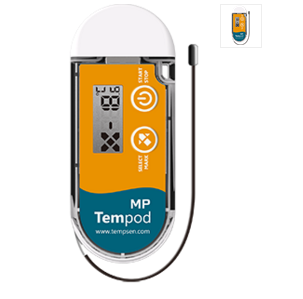

Tempod M series temperature data loggers are designed for the complex conditions in transport and storage, with mark button for recording important events, users would be fully aware of the all events which need special attention, and multiple alarms could deliver detailed statistic results in various alarm ranges, this helps to offer more visibility for biopharmaceutical products in cold chain and validation operations.
Meanwhile, collaborating with TempCentre data management software would help users gain more deeper insight into the environment condition the goods have been through. Tempod M series logger is your trustworthy option for improving the visibility of transport and storage.
|
|
Built-in USB Connector
Enables quick connection with PC anytime anywhere, no cable and reader required for downloading data. |
 |
Encrypted PDF Report
Automatically generating encrypted PDF format report, no software required. |
 |
Multiple Alarm Ranges
Up to 5 alarm ranges offer precise and intuitive statistics for each configured alarm range. |
 |
Mark Function
Click Mark button to write in time stamp for events requiring special attention during shipment, up to 9 marks available. |
 |
EN12830 Compliance
Complies to EN12830:1999 for transport, storage and distribution of chilled, frozen, deep frozen, quick-frozen food and others. |
 |
3-point Calibration
100% Factory 3-point calibration, each logger comes with a NIST traceable calibration certificate. |
 |
TempCentre Support
Work with TempCentre desktop software to obtain precise insight into shipping environment information with help of a collection of advanced data analysis tools, to enable more efficient management for history data. |
 |
Qualified for Air Transport Monitoring
Complies to RTCA/DO-160G Environmental Conditions and Test Procedures for Airborne Equipment, qualified for air transport under active status. |
.
- USB connector
- Automatic encrypted PDF report
- LCD shows alarm and history information
- Multi-alarm range
- Event mark function
- Battery replaceable
- External NTC Probe(1m)
- EN12830 compliance
- FDA 21 CFR 11 compliance
- RTCA-DO160G compliance
| Type |
Multi-use |
| Measurement Range |
-30°C...70°C (-22°F...158°F) |
| Sensor |
External NTC probe(1m) |
| Memory Capacity |
28800 readings |
| Accuracy |
±0.5°C/0.9°F |
| Resolution |
0.1°C /°F |
| Start Mode |
Manual start/Auto start |
| Logging Interval |
10 seconds...2 hours |
| Alarm Range |
High and low alarm/5 alarm ranges |
| Alarm Type |
Single Event/Cumulative Alarm |
| Battery |
3.0V CR2450 lithium battery (Replaceable) |
| Typical Run Time |
1 year (30 minutes per point) |
| Shelf Life |
2 years |
| Display |
Multi-function LCD
•OK(√), Alarm(x), Running indicator
•Statistics (max, min, avg)
•Mark history |
| Button |
Start/Stop |
| Connection |
USB 2.0 Connector |
| Data Specification |
•Temperature
•Date/Time
•Mark |
| Automatic Data File |
Encrypted PDF report |
| Software |
TempCentre Data Management Software |
| Compatible OS |
WIN XP/7/8 |
| Calibration |
100% Factory 3-point Calibration |
| Certifications |
CE, EN12830, RTCA-DO160G |
| Dimensions |
88mm L x 36mm W x 12.5mm H |
| Weight |
Approx. 38g |
| Packaging/Material |
Case/Polycarbonate |
| Protection Class |
IP54
|
