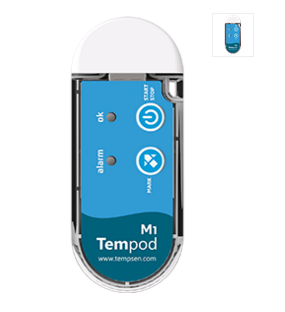

  [Data Loggers (In-transit)] USB Temperature Data Logger

  𵨸 : Tempod M1


.The safety of temperature sensitive products including pharmaceuticals, vaccines and food raised more and more public attention nowadays, transport is an important part making up supply chain, so no doubt a reliable and accurate approach to monitoring the temperature condition in transit is as vital as other quality control measures.


Tempod M series temperature data loggers are designed for the complex conditions in transport and storage, with mark button for recording important events, users would be fully aware of the all events which need special attention, and multiple alarms could deliver detailed statistic results in various alarm ranges, this helps to offer more visibility for biopharmaceutical products in cold chain and validation operations.


Meanwhile, collaborating with TempCentre data management software would help users gain more deeper insight into the environment condition the goods have been through. Tempod M series logger is your trustworthy option for improving the visibility of transport and storage.




Built-in USB Connector

Enables quick connection with PC anytime anywhere, no cable and reader required for downloading data.



Mark Function

Click Mark button to write in time stamp for events requiring special attention during shipment, up to 9 marks available.



EN12830 Compliance

Complies to EN12830:1999 for transport, storage and distribution of chilled, frozen, deep frozen, quick-frozen food and others.



3-point Calibration

100% Factory 3-point calibration, each logger comes with a NIST traceable calibration certificate.



TempCentre Support

Work with TempCentre desktop software to obtain precise insight into shipping environment information with help of a collection of advanced data analysis tools, to enable more efficient management for history data.



Qualified for Air Transport Monitoring

Complies to RTCA/DO-160G Environmental Conditions and Test Procedures for Airborne Equipment, qualified for air transport under active status.


  • USB connector
  • Event mark function
  • Battery replaceable
  • EN12830 compliance
  • FDA 21 CFR 11 compliance
  • RTCA-DO160G compliance

Type Multi-use
Measurement Range -30C...70C (-22F...158F)
Sensor Internal NTC
Memory Capacity 28800 readings
Accuracy 0.5C/0.9F
Resolution 0.1C /F
Start Mode Manual start/Auto start
Logging Interval 10 seconds...2 hours
Alarm Range High and low alarm
Alarm Type Single Event/Cumulative Alarm
Battery 3.0V CR2450 lithium battery (Replaceable)
Typical Run Time 1 year (30 minutes per point)
Shelf Life 2 years
Display LED
•OK, Alarm, Running Status
Button Start/Stop
Connection USB 2.0 Connector
Data Specification •Temperature
•Date/Time
•Mark
Software TempCentre Data Management Software
Compatible OS WIN XP/7/8
Calibration 100% Factory 3-point Calibration
Certifications CE, EN12830, RTCA-DO160G
Dimensions 88mm L x 36mm W x 12.5mm H
Weight Approx. 31g
Packaging/Material Case/Polycarbonate
Protection Class IP54
