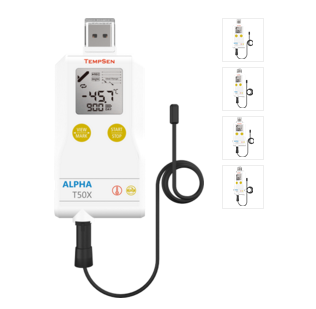

  [Data Loggers (Life Science)] Temperature USB PDF Data Logger with External NTC Sensor

  𵨸 : Alpha T50X


.



TempSen Alpha series data loggers are specially engineered to provide users with accurate temperature, humidity measurement for a wide variety of applications, from shipment, dry ice delivery, cryo containers to refrigerators, freezers, laboratories and warehouses, Alpha loggers combine the leading technology and innovative design philosophy, enabling reliable and precise monitoring and fast data output with automatic encrypted PDF report, no software required for downloading data, Alpha logger also features easy to use for setup via USB connector, no reader and cable required for configuration, furthermore, Alpha also supports configuration online without software, truly realizing totally software-free solution for cold chain monitoring. The enhanced PDF report contains device information, logging summary, alarm information and a complete graph of trip, providing you with an integrated view throughout entire monitoring course.


Versatile LCD delivers all key information (e.g. current readings, alarm status, history statistics, violation event indicators, time out of range ...) with few button clicks, to help users make immediate shipment acceptance/rejection decision on site, and facilitate quicker shipment disposition.


TempSen Alpha series data loggers aim to offer precise monitoring data with superior performance, to help users to ensure product quality, improve supply chain tracking efficiency, and better approach GxP regulation compliance.





Auto PDF Report with Embedded Data

Automatically generating encrypted PDF format report, no software required to obtain data, embedded raw data allows analyzing report via TempCentre and Cold Chain Cloud.



Extra Long Battery Life

Up to 900 days battery life offers long-term continuous recording possibilities.



Repeat Start

Repeat start function enables quick start on site without re-configuration.



Online configuration without software

Support of online configuration without needing to download and install any specific software.



Multiple Alarm Ranges

Up to 5 alarm ranges offer precise and intuitive statistics for each configured alarm range.



Mark Function

Click Mark button to write in time stamp for events requiring special attention during shipment, up to 9 marks available.



Loop Recording

Allows new data to override old data points when memory is full, enables long term monitoring for static applications.



Qualified for Air Transport Monitoring (FAA Compliance)

Complies to RTCA/DO-160G Environmental Conditions and Test Procedures for Airborne Equipment, qualified for air transport under active status.



3-point Calibration

Factory 3-point calibration, each logger comes with a NIST traceable calibration certificate.



EN12830 Compliance

Complies to EN12830:1999 for transport, storage and distribution of chilled, frozen, deep frozen, quick-frozen food and others.



TempCentre 2.0 Support

Work with TempCentre 2.0 desktop software to easily and accurately view, analyze, archive and share data recorded from transport and storage, and achieve 21 CFR 11 compliance.



  • Powerful LCD provides all key information indication
  • Encrypted PDF report embedded with raw data
  • Software-free online configuration
  • Up to 900 days extra-long battery life
  • Repeat start without re-configuration
  • Temperature start allows recording starts when temperature reaches required range
  • Loop recording suitable for long term static monitoring
  • Multiple alarm ranges (5 ranges)
  • USB 2.0 plug
  • Event mark function (convenient for data trim with TempCentre)
  • Compatible with TempCentre 2.0, enables quick and safe viewing, analysis, searching and archiving data records.
  • NIST traceable 3-point calibration
  • EN12830 compliance
  • GxP Compliance
  • FAA Compliance
  • FDA 21 CFR 11 compliance (with TempCentre 2.0)
  • CE Certification
  • Compact and lightweight
Type Multi-use
Measurement Range -50C...70C (-58F...158F)
Sensor Interchangeable external NTC Sensor (1m)
Memory Capacity 28800 readings
Accuracy 0.5C/0.9F
Resolution 0.1C /F
Start Mode Manual start/Auto start/Temperature Start
Logging Interval 1 minute...2 hours
Logging Mode Start&Stop/Loop
Alarm Range High and low alarm/5 alarm ranges
Alarm Type Single Event/Cumulative Alarm
Battery 3.6V lithium battery
Typical Run Time 900 days
Shelf Life 1 year
Display Multi-function LCD
•OK(), Alarm(x), Running status
•Temperature statistics (max, min, avg)
•Limit violation event indication
•Duration time of each alarm zone
•Mark history
Button Start/Stop/Mark/View
Connection USB 2.0 Connector
Data Specification •Temperature
•Date/Time
•Mark
Automatic Data File Encrypted PDF report with embedded raw data
Software TempCentre 2.0 (21 CFR 11 Compliance)
Compatible OS WIN XP/7/8
Calibration Factory NIST traceable 3-point Calibration
Certifications CE, EN12830, RTCA-DO160G (FAA Compliance)
Dimensions 107mm L x 48mm W x 12mm H (exclude external probe)
Weight Approx. 75g
Packaging/Material Case/Polycarbonate
Protection Class IP54
