[Data Loggers (In-transit)]

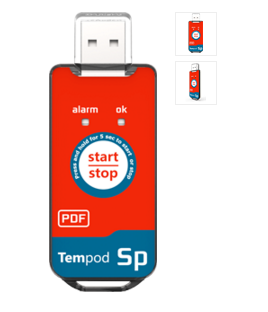

Single Use USB+PDF Temperature Data Logger
모델명 :
Tempod® SP
|
|
.
|
|
Built-in USB Connector
Enables quick connection with PC anytime anywhere, no cable and reader required for downloading data. |
 |
Encrypted PDF Report
Automatically generating encrypted PDF format report, no software required. |
 |
EN12830 Compliance
Complies to EN12830:1999 for transport, storage and distribution of chilled, frozen, deep frozen, quick-frozen food and others. |
 |
TempCentre Support
Work with TempCentre desktop software to obtain precise insight into shipping environment information with help of a collection of advanced data analysis tools, to enable more efficient management for history data. |
 |
Qualified for Air Transport Monitoring
Complies to RTCA/DO-160G Environmental Conditions and Test Procedures for Airborne Equipment, qualified for air transport under active status. |
- USB connector
- Automatic encrypted PDF report generation
- 2-year shelf life
- EN12830 compliance
- FDA 21 CFR 11 compliance
- RTCA-DO160G compliance
| Type |
Single use |
| Measurement Range |
-30°C...70°C (-22°F...158°F) |
| Sensor |
Internal NTC |
| Memory Capacity |
7200 readings |
| Accuracy |
±0.5°C/0.9°F |
| Resolution |
0.1°C /°F |
| Start Mode |
Manual start/Auto start |
| Logging Interval |
10 seconds...2 hours |
| Alarm Range |
High and low alarm |
| Alarm Type |
Single Event/Cumulative Alarm |
| Battery |
3.0V CR2032 lithium battery |
| Typical Run Time |
90 days max |
| Shelf Life |
2 years |
| Display |
LED
•OK, Alarm, Running Status |
| Button |
Start/Stop |
| Connection |
USB 2.0 Connector |
| Data Specification |
•Temperature
•Date/Time |
| Automatic Data File |
Encrypted PDF report |
| Software |
TempCentre Data Management Software |
| Compatible OS |
WIN XP/7/8 |
| Certifications |
CE, EN12830, RTCA-DO160G, Manufacturer's Validation Certificate |
| Dimensions |
78mm L x 30mm W x 8mm H |
| Weight |
Approx. 18g |
| Packaging/Material |
Case/Polycarbonate |
| Protection Class |
IP54
|
|
|
