[Temperature Recording Labels]

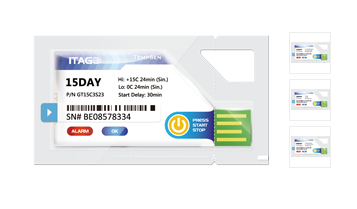

Pre-programmed Single Use USB Temperature Recording
:
ITAG3
|
|
.
|
Built-in USB Connector
Enables quick connection with PC anytime anywhere, no cable and reader required for downloading data. |
|
Factory Pre-programmed
All recording parameters pre-programmed in factory, just a click to go before shipment. |
|
EN12830 Compliance
Complies to EN12830:1999 for transport, storage and distribution of chilled, frozen, deep frozen, quick-frozen food and others. |
|
IP67 Protection
All recording parameters pre-programmed in factory, just a click to go before shipment. |
|
TempCentre Support
Work with TempCentre desktop software to obtain precise insight into shipping environment information with help of a collection of advanced data analysis tools, to enable more efficient management for history data. |
|
Qualified for Air Transport Monitoring
Complies to RTCA/DO-160G Environmental Conditions and Test Procedures for Airborne Equipment, qualified for air transport under active status. |
- Built-in USB connector
- Food-safety & water proof package
- Pre-programmed
- EN12830 compliance
- FDA 21 CFR 11 compliance
- RTCA-DO160G compliance
Type |
Pre-programmed/Single use |
Measurement Range |
-30C...70C (-22F...158F) |
Sensor |
Internal NTC |
Memory Capacity |
7200 readings |
Accuracy |
0.5C/0.9F |
Resolution |
0.1C /F |
Start Mode |
Manual start |
Logging Interval |
12 seconds...2 hours |
Alarm Range |
High and low alarm |
Alarm Type |
Single Event/Cumulative Alarm |
Battery |
3.0V CR2032 lithium battery |
Typical Run Time |
60 days max |
Shelf Life |
1 year
|
Display |
LED •OK, Alarm, Running Status |
Button |
Start/Stop |
Connection |
USB 2.0 Connector |
Data Specification |
•Temperature •Date/Time |
Software |
TempCentre Data Management Software |
Compatible OS |
WIN XP/7/8 |
Certifications |
CE, EN12830, RTCA-DO160G, Manufacturer's Validation Certificate |
Dimensions |
80mm L x 47mm W x 4mm H
|
Weight |
Approx. 10g
|
Packaging/Material |
Food-Safety Plastic Bag/Nylon+PE
|
Protection Class |
IP67 |
|
|
